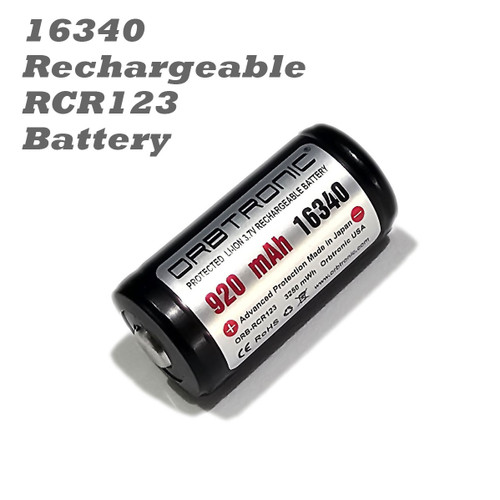

16340 Battery RCR123 Protected 920 mAh Li-ion Rechargeable 3.7V Button Top Orbtronic - Free Battery Safety Case Included

MPN:
ORB-RCR123
Availability:
IN STOCK-Usually ships the same business day
Minimum Purchase:
2 units
Bulk Pricing:
Buy in bulk and save
  • RCR123 Battery 16340 Protected Li-ion Rechargeable 3.7V 920 mAh Button top Orbtronic

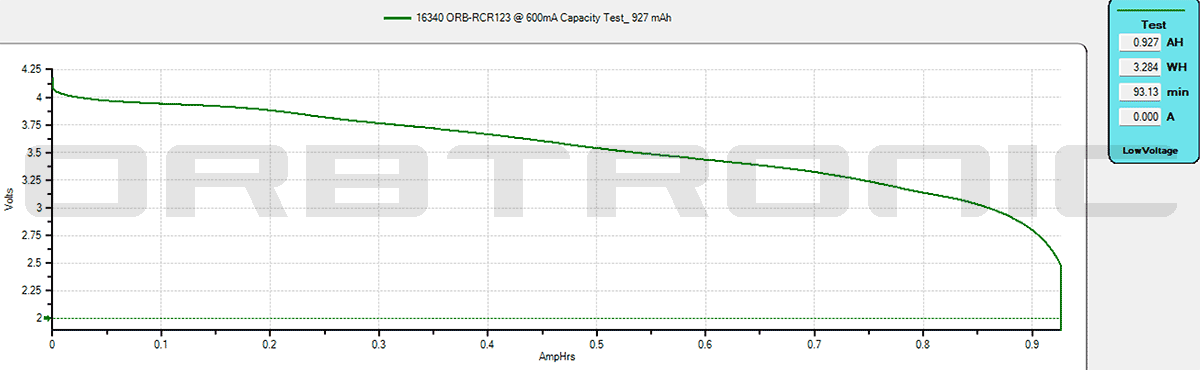

  • RCR123-Orbtronic-capacity-test-discharge-graph-curve
  • safety-protective-li-ion-case-holder

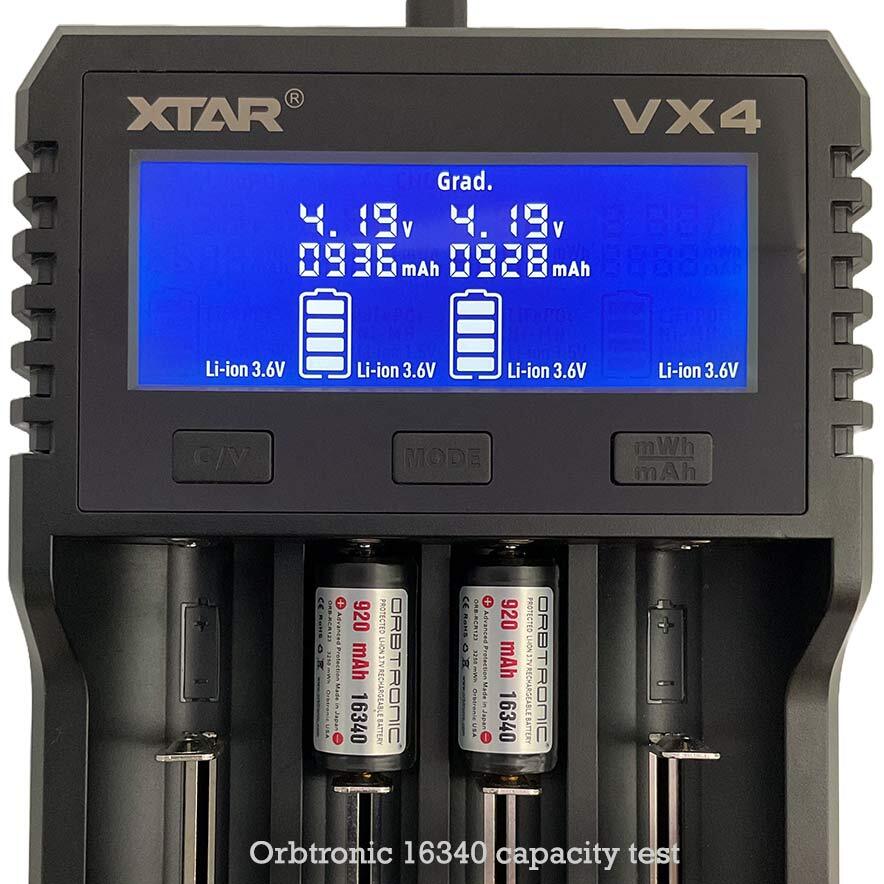

  • RCR123-Orbtronic-capacity-test-920mAh-1A-load
  • RCR123 Battery Protected 16340 Li-ion Rechargeable 3.7V 920 mAh Button top Orbtronic
$7.99

Description

16340 - RCR123 Battery 920 mAh !

Protected Rechargeable li-ion 3.7V - Free Battery Safety Case Included

New [2024] and Improved rechargeable Orbtronic RCR123 - 16340 3.7V Protected cell.

Highly Recommended 16340 charger (charging 1 or 2 batteries)

or the best 16340 charger for charging 1, 2, 3, or 4 batteries)

16340 / RCR123 Battery Specifications:

  • Battery Type / size: 16340 RCR123 Protected 3.7V
  • Other names used for this type of battery: RCR123 3.7V Li-ion, RCR123A 3.7V, CR123A Rechargeable 3.7V, 123A 3.7V Li-ion
  • Chemistry: Li-ion (Lithium-ion)
  • Nominal Voltage: 3.7 V (Volts)
  • Capacity: 920 mAh [milliAmp (or milliAmpere) hour]
  • Energy: 3250 mWh [milliWatt hour]
  • Charging current: 0.25 A - 0.5 A
  • Maximum Discharge Current: 3 A
  • Maximum Charging Current: 0.5A
  • Full Charge Voltage: 4.2 V
  • Diameter: 16.5 mm (0.649 in.)
  • Length: 35 mm (1.377 in.)
  • Weight: 0.63 oz (18 g)
  • Button top: Yes, welded
  • Integrated Safety Electronic Protection: Yes - Fully Protected (Welded Advanced Electronic Protection- Seiko-Japan)


Important:

  • Charge fully to 4.2V before first use.
  • Never attach any metal moving part |magnet| to the top-positive, or the bottom-negative battery contact.
  • Never use force to install (insert) li-ion battery.
  • Use only high-quality battery charger.
  • Do not expose to heat.
  • Keep spare battery that is not in use in plastic holder-included (or any insulating [plastic] container).
  • Do not charge unattended.
  • Do not store your li-ion batteries fully charged (for extended period of time -1 month and longer).
  • Store in cold and dry place at approximately 3.7V (storage charge).
  • After battery is discharged-don't leave it discharged=>charge it as soon as possible.
Important:
Please make sure that your device is compatible with 3.7V (4.2V fully charged), 16340 Li-ion RECHARGEABLE battery (also called: RCR123 3.7V).
Please refer to [your device] user manual under "Battery" section (If 16340 or RCR123 3.7V Rechargeable battery is listed as compatible battery)
This is Not replacement for regular Non-rechargeable / Primary 123A (CR123A) 3.0V Lithium battery.
Our RCR123 is the same size as CR123A, but voltage is different 3.7V (4.2V fully charged) Rechargeable Vs. 3.0V Non-rechargeable/Primary battery.


WARNING + Li-ion BATTERY SAFETY INSTRUCTIONS:

IMPORTANT BATTERY SAFETY INSTRUCTIONS AND WARNINGS | ALL LI-ION BATTERY USERS MUST READ BEFORE USING LITHIUM-ION BATTERIES.

Failure to read, and follow Li-ion safety instructions, and warnings may result in fire, personal injury, and property damages if the battery is charged and/or used improperly.



  • DO NOT SHORT CIRCUIT. Short circuits may cause a fire and injury!
  • Charge battery fully to 4.2V before first use.
  • Use high-quality charger specifically designed to charge Li-ion batteries.
  • Do not charge unattended.
  • Always keep your battery that is not in use inside the plastic battery holder(container).
  • Do not keep a bare battery in your pocket, purse, or anywhere together with other metal (conductive) objects.
  • Never attach any metal moving part |magnet| to the top positive or the bottom negative battery contact.
  • DO NOT USE WITH E-CIGARETTE, VAPORIZER, (E-cig, vape, mod) OR SIMILAR DEVICE
  • Stop using the battery with damaged PVC tube (wrap) or terminal insulator immediately.
  • If the battery is damaged in any way stop using it immediately.
  • Never discharge a Li-ion battery at a rate exceeding the maximum discharge current specified for that battery.
  • Never use force to install (insert) Li-ion battery.
  • Do not use old, and new batteries together.
  • Do not solder directly onto the battery.
  • Do not immerse in any liquid.
  • Do not drop the battery. Always keep it in a plastic protective holder.
  • Do not place the battery in high-pressure containers, microwave ovens, or on induction cookware.
  • Immediately discontinue use of the battery if, while using, charging or storing the battery, the battery emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any other way.
  • Do not carry, or store the batteries together with hairpins, necklaces, or other conductive metal objects.
  • Use only high-quality battery Li-ion charger (CC/CV 4.2V max).
  • Do not expose to heat.
  • Do not disassemble or modify the battery.
  • Keep the battery away from children, and pets.
  • Never charge or store the batteries inside your car in extreme temperature. Extreme temperatures (low or high) might ignite the battery and cause a fire.
  • Do not short (connect) positive, and negative battery terminals (contacts) intentionally, or unintentionally.
  • Never charge the battery over 4.25V (properly charged li-ion battery is 4.2 Volts or less / full charge).
  • Do not reverse the positive (+) and negative (-) terminals when charging, or using the battery.
  • Never charge the battery at a current exceeding manufacturer-specified charging current.
  • Do not expose the battery to water or salt water, or allow the battery to get wet.
  • You must verify polarity before connecting the battery to the host device (or charger).
  • Never completely discharge the Li-ion battery ( below 2.5V under load ).
  • After the battery is discharged-don't leave it discharged-charge battery as soon as possible (10 min. rest time).
  • It is your responsibility to determine that your charger and host device works properly.
  • On (battery electrolytes) exposure to skin, flush with water immediately.
  • If eye exposure occurs, flush with water for 15 minutes, and seek emergency care immediately.
  •  Always keep metal objects or other materials that can short circuit battery terminals away from the batteries

What is short circuit?

When the positive (+) and negative (-) terminals of a battery are connected, the current will surge to extremely high levels due to the absence of resistance in the path to limit the flow. This short circuit can lead to dangerously high temperatures, potentially causing a fire.


The price is for a single rechargeable RCR123 / 16340 protected Orbtronic 920mAh battery cell.

What is in the box?
  • Orbtronic Protected RCR123 3.7V Li-ion rechargeable battery
  • Free Battery Case - included when batteries are bought in quantities of 2 or multiples of 2. (Example 2, 4, 6, 8, 10, etc.)
  • Protective Li-ion packaging: specially designed to ensure the safe handling and transport of batteries.

We ship fast from Florida USA.
